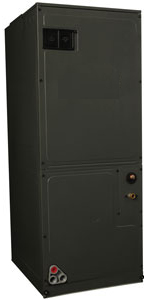

AVPTC SmartFrame™ Air Handler
Multi-Position, Variable-Speed
ComfortNet™ Communications System Compatible
R-410A Chlorine-Free Refrigerant
- Compatible with the ComfortNet Communicating System family
of products
- New SmartFrame™
cabinet construction
- Factory-installed thermal
expansion valves for cooling
and heat pump applications
- Variable-speed ECM blower motor
- Provides constant CFM over a wide range of static pressure conditions independent of duct system;provides low CFM for efficient fan-only operation
- Up to 12 field-selectable airflow settings can be adjusted to optimize the system’s CFM for each individual mode of operation
- CFM indicator
- Auto configuration of the airflow and tonnage in communicating mode
- Maximum four low-voltage
wires required for operation
in communicating mode
- Improved humidity control and comfort
- Compatible with heat pumps and variable-capacity cooling applications
- Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
- Complies with the Factory-sealed Air Handling Credit with or without field-installed filter kits as listed in the 2001 Florida Building Code, Chapter 13, Section 610.2.A.2.1
- AHRI certified; ETL listed

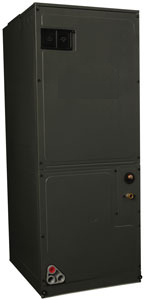

ASPT SmartFrame™ Air Handler
Multi-Position, Multi-Speed
R-410A Refrigerant
Featuring the New SmartFrame™ Cabinet
- Direct-drive, multi-speed motor allows air volume variation for heating and cooling applications
- All-Aluminum evaporator coil
- Factory-installed internal TXV valve
- Transformer & blower time-delay
- New SmartFrame™ cabinet construction
- Fully painted cabinet with attractive Architectural Gray finish
- 21" cabinet depth for easy attic access
- Coil-mounting track for quick repositioning
- Glue-less cabinet insulation retention
- Multiple electrical knockouts
- Suitable for horizontal, vertical, upflow, or downflow installations
- Improved condensate management
- Screw-less sides & back prevents condensation
- Three-hole condensate pan
- Tool-less filter access accommodates standard-size filters
- Factory-sealed cabinet achieves less than 2% leakage rate
- AHRI certified; ETL listed
ARUF SmartFrame™ Air Handler
Multi-Position, Multi-Speed
R-410A Refrigerant
Featuring the New SmartFrame™ Cabinet
- Direct-drive, multi-speed motor allows air volume variation for heating and cooling applications
- All-Aluminum evaporator coil
- Transformer & blower time-delay
- New SmartFrame™ cabinet construction
- Galvanized leather-grain embossed finish
- 21" cabinet depth for easy attic access
- Coil-mounting track for quick repositioning
- Glue-less cabinet insulation retention
- Multiple electrical knockouts
- Suitable for horizontal, vertical, upflow, or downflow installations
- Improved condensate management
- Screw-less sides & back prevents condensation
- Three-hole condensate pan
- Tool-less filter access accommodates standard-size filters
- Factory-sealed cabinet achieves less than 2% leakage rate
- AHRI certified; ETL listed
MBVC Modular Blower
ComfortNet™-Compatible Communicating System
Multi-Position, Variable Speed
- Compatible with the ComfortNet Communicating System family of products
- Variable-speed ECM-based blower motor
- Auto-configuration of the airflow and tonnage in communicating mode
- CFM indicator
- Maximum four low-voltage wires required for operation in communicating mode
- Built-in dehumidification feature
- Diagnostic indicator lights
- Storage of six prior fault codes
- Programmable heat strip settings
- For cooling and heat pump applications
- Color-coded terminal strip for non-communicating set-up
- AHRI certified; ETL listed
MBR Modular Blower
Multi-Position, Multi-Speed
- Multi-speed PSC blower –
motor speed is easily changed
- Compatible with heat pumps
and air conditioning units
- Upflow, downflow, and
horizontal applications
- Control board includes a fan
delay in cooling mode and is
isolated from the air stream
- Blower section usable
as an electric furnace
- Intended for use with cased
evaporator coils (CAPF/CHPF) and
condensing units or heat pumps
- Lasting Goodman® brand
quality and durability
- Painted, galvanized steel cabinet
- AHRI certified; ETL listed
AWUF Air Handler
Wall-Mounted, Multi-Speed
R-410A or R-22 Refrigerant
- Direct-drive, multi-speed motor allows air volume variation for heating and cooling applications
- Thermoplastic drain pan
- Legendary Goodman quality and durability
- AHRI certified; ETL listed
ACNF Air Handler
Ceiling-Mounted Electric Heat
- High-efficiency evaporator coil
- Direct-drive, resilient-mount multi-speed motor
- Quiet operation
- Legendary Goodman quality and durability
- AHRI certified; ETL listed
- All-Aluminum tube/aluminum fin-coil
CAUF Uncased Indoor Coil
Upflow/Downflow Applications
R-410A Refrigerant
- Rust-resistant, thermoplastic drain pans
- Legendary Goodman quality and durability
- Grooved aluminum tubing and
corrugated aluminum fin coil
- AHRI certified; ETL listed
CAPF Cased Indoor Coil
Upflow/Downflow Applications
R-410A Refrigerant
- Rust-resistant, thermoplastic
drain pans
- Coil painted Architectural Gray
- Grooved aluminum tubing and
corrugated aluminum fin coil
- AHRI certified; ETL listed
CAPT Cased Indoor Coil with Internal TXV
Upflow/Downflow Applications
R-410A Refrigerant
- Rust-resistant, thermoplastic
drain pans
- Coil painted Architectural Gray
- Internal factory-installed TXV
- Grooved aluminum tubing and
corrugated aluminum fin coil
- AHRI certified; ETL listed
CHPF Painted Cased Coil
Indoor Coil
Horizontal ‘A’ Applications
R-410A Refrigerant
- Rust-resistant, thermoplastic
drain pans
- Coil painted Architectural Gray
- Grooved aluminum tubing and
corrugated aluminum fin coil
- AHRI certified; ETL listed
CSCF Horizontal Slab Evaporator Coil
Horizontal ‘A’ Applications
s
R-410A Refrigerant
- Rust-resistant, thermoplastic
drain pans
- Coil painted Architectural Gray
- Rifled copper tubing and corrugated
aluminum fin coil
- AHRI certified; ETL listed
